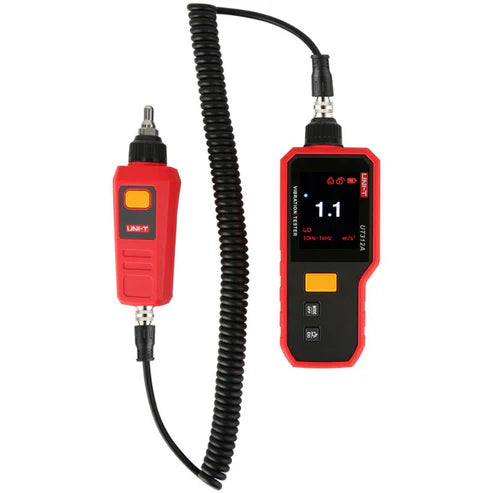

UNI-T UT312A Handheld Vibration Tester

UNI-T UT312A Handheld Vibration Tester

The UNI-T UT312A Handheld Vibration Tester provides precise diagnostics for measuring mechanical vibration parameters, including acceleration, velocity, and displacement. It is designed to assist maintenance engineers in Sri Lanka with identifying unbalance, misalignment, and bearing faults in rotating equipment.

Discover our complete selection of Vibration Meters – specifications, features, and mechanical condition testers in Sri Lanka!

Featuring data hold capabilities, low frequency/high frequency mode selection, and a highly responsive sensor probe, this instrument streamlines preventive maintenance routes and helps prevent unexpected industrial machinery downtime.

Technical Specifications

• Acceleration (Peak): 0.1~199.9m/s² | Frequency: 10Hz~1kHz (LO), 1kHz~15kHz (HI) | Accuracy: ±(5%+2dgts)
• Velocity (RMS): 0.1~199.9mm/s | Frequency: 10Hz~1.5kHz
• Displacement (P-P): 0.001~1.999mm | Frequency: 10Hz~1kHz | Accuracy: ±(10%+2dgts)

Key Features

• Functions: Data hold feature to freeze readings during difficult-to-reach inspections
• Frequency Support: Switchable high and low vibration frequency modes
• Display: High-contrast digital LCD for clear visibility in dark plant environments
• Power: 9V battery with low power consumption and auto power-off
• Build: Ergonomic, durable housing designed for mobile technicians

Applications

• Preventive maintenance on industrial HVAC systems
• Vibration trending for manufacturing plant conveyor systems
• Service diagnostics for heavy-duty motors and blowers

Package Includes

• 1 x UNI-T UT312A Vibration Tester main unit
• Vibration sensor probe
• 9V battery (installed)
• Rugged carrying case
• English user manual

If your diagnostic workflow requires PC data logging, consider upgrading to the UNI-T UT315A Digital Vibration Tester Data Logger for advanced USB connectivity and software analysis.

Downloads

📄 Download UNI-T UT312A Data Sheet
📄 Download UNI-T UT312A User Manual
