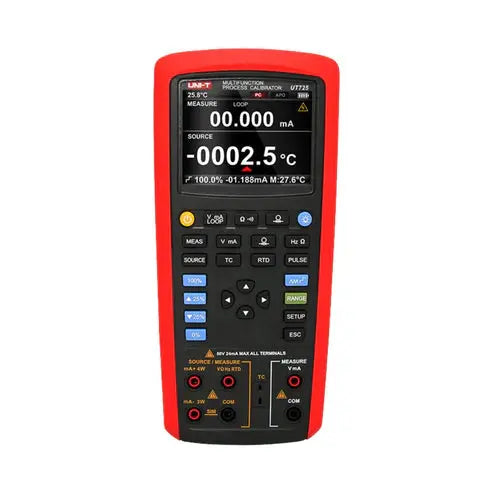

UNI-T UT725 Documenting Multifunction Process Calibrator

UNI-T UT725 Documenting Multifunction Calibrator

The UNI-T UT725 Documenting Multifunction Calibrator is a portable, all-in-one documenting calibrator designed for field calibration technicians, instrumentation engineers, process control specialists, and factory maintenance teams. Available in Sri Lanka, this advanced multifunction calibrator provides a comprehensive solution for sourcing, measuring, documenting, and troubleshooting a wide range of industrial process signals.

Offering functionality comparable to high-end calibrators such as the Fluke 754 Documenting Process Calibrator and Beamex MC4, the UT725 combines precision, versatility, and portability in a rugged field-ready design. It can source and measure current, voltage, resistance, frequency, temperature, and pressure (via optional modules), making it ideal for calibration and maintenance tasks across industrial environments.

With built-in USB data logging, simultaneous source and measurement capabilities, integrated 24V loop power, and support for multiple thermocouple and RTD types, the UNI-T UT725 is a powerful tool for calibration professionals seeking efficiency, accuracy, and complete field documentation.

Key Features

• High Accuracy Performance — Delivers exceptional measurement precision with ±(0.02%+2) accuracy for DC voltage and current, ±(0.01%+1) for frequency, and ±(0.05%+10) for resistance measurements.
• All-in-One Calibration Solution — Sources and measures mA, voltage, resistance, frequency, temperature, thermocouples, RTDs, and pressure modules, eliminating the need for multiple instruments.
• 24V Loop Power Supply — Provides integrated 24V loop power to transmitters while simultaneously measuring current for live loop testing and diagnostics.
• Simultaneous Source & Measure — Perform source and measurement functions at the same time, significantly improving calibration speed and efficiency.
• Step & Ramp Functions — Automates signal stepping and ramping for fast transmitter testing, verification, and calibration procedures.
• USB Data Logging & Documentation — Store, recall, and transfer calibration data via USB for complete documentation and traceability.
• Extensive Temperature Support — Supports 20 thermocouple types and 10 RTD sensor types including Pt100, Pt200, Pt500, Pt1000, Cu10, Cu50, and Cu100.
• Large 20,000-Count LCD Display — Features an adjustable-contrast LCD display for clear visibility under various lighting conditions.
• Pressure Module Compatibility — Expandable with optional pressure modules for complete pressure transmitter calibration applications.
• Compact & Rugged Design — Lightweight and portable construction designed for demanding industrial field environments.

Common Applications

• Transmitter & Sensor Calibration — Calibrate and document process transmitters, sensors, RTDs, thermocouples, and instrumentation devices with high accuracy.
• PLC/DCS Loop Testing — Verify, troubleshoot, and maintain control system loops using simultaneous source and measurement functionality.
• Factory Maintenance & Quality Control — Record calibration data for preventive maintenance schedules, compliance audits, and quality assurance programs.
• Process Instrumentation Commissioning — Ideal for startup, commissioning, and validation of industrial process control systems.

Technical Specifications

• Product Name: UNI-T UT725 Documenting Multifunction Calibrator
• DC Voltage/Current Accuracy: ±(0.02%+2)
• DC Voltage Ranges: 50mV / 500mV / 50V
• Current Range: 20mA
• Frequency Accuracy: ±(0.01%+1)
• Resistance Accuracy: ±(0.05%+10)
• Thermocouple Support: 20 TC Types
• RTD Support: 10 RTD Types (Pt100, Pt200, Pt500, Pt1000, Cu10, Cu50, Cu100 and more)
• Loop Power Output: 24V DC
• Display: 20,000-Count LCD with Adjustable Contrast
• Power Source: 6 x 1.2V AA Rechargeable Batteries
• Dimensions: 195 × 95 × 58 mm
• Weight: 650 g
• Operating Temperature: -10°C to 55°C

What's in the Box?

• 1 x UNI-T UT725 Documenting Multifunction Calibrator
• 1 x Set of Test Leads
• 1 x USB Cable
• 1 x Power Adapter
• 1 x Temperature Probe
• 6 x AA Rechargeable Batteries
• 1 x Carrying Bag
• 1 x English User Manual
